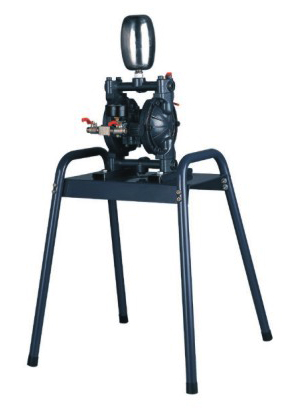

DOUBLE DIAPHERGEM PUMP

Double diapheragm pump is used at the coating field in more higher safety required.for

example ,the general paint coating,PU paint,UV special paint etc.all can be transferred,furthermore,can be connected with air spray gun,electrstastic spray gun & auto spray gun etc,directly,meanwhile,the double diapheragem pumps also can be used to circulate ink for painting,the pumps are being with compact,equal &transferred with  farge volume etc.

SPECIFICATIONS:

Pressure rate:1:1

Paiting tank volume:4-200L

Transmitting capacity:5L/min(0.4kg/cm2)

                                 7.5L/min(1kg/cm2)

                                10.5L/min(2kg/cm2)

Used air pressure:  1-5kg/cm2

Max.painting pressure:5kg/cm2

Max.pump speed: 160times/min(5kg/cm2)

Min.pump speed:80 times/min (0.4kg/cm2)

MEAS:46.5X37X47.5CM 1PCS
