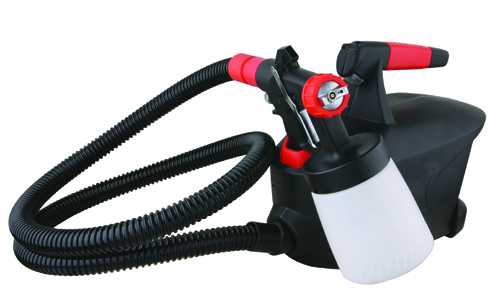

MOTOR DRIVER SPRAY GUN
1.General Characteristics
This gun can be mainly used for spray-painting car.furniture.instrusment.equipment and
for decoration of hotel.house dansion etc.
2. Operation method
a. Connect the air hose with gun and motor before use.
b. Adjusting air volume turning the air adjusting valve clockwise will reduce the air
volume and counter-clockwise will increase air volume.
c. Connect the motor with power supply ,turn on the power and the indicator light on.
the motor start working to blow the air current is blowed down form the vent.turn off
the power and the indicator light off,the motor stop working and no air current out put.
TECHNIQUE PARAMTER
Air pressure :0.1-0.3 bar
Max fluid delinery:150ML/MIN
|
Input volt (v)
|
Unload speed (r.p.m)
|
Unload current (A)
|
Load speed(r,p.m)
|
load current (A)
|
|
120
|
35000
|
1.8
|
20000
|
3.80
|
|
230
|
38000
|
0.9
|
21000
|
1.90
|
|
